RC-1 Dissolution Tester

Brand:Nanbei

Model:RC-1

Application:

Product Introduction

Introduction:

RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

     Applicable standards:

  • National standard( Chinese codex ) /2010

  • Corporate standard(Dissolution tester )Q/12XQ0187-2010


   Model :RC-8DS
    Features:

  • It has eight vessels and eight poles, with four vessels and four poles in front and other at back.
  • The head moves up/down automatically.
  • The basket units and paddle units are made of imported stainless steel (SUS316L).
  • The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
  • A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
  • It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.
  • It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.

  • Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

     Specifications:

  • Speed range (20~200)rpm
  • Speed accuracy ±2rpm
  • Temperature range ambient to +45.0℃
  • Temperature Stability ±0.3℃
  • Preset timing nine points (1~999)min
  • Time accuracy ±0.5mm
  • Paddle radial run-out ±0.5mm
  • Basket radial run-out ±1.0mm
  • Power 220V/50Hz/1200W or 110V/60Hz/1200W
  • Dimension (680*540*480)mm3

    Model :RC-8D

     Features:

  • It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
  • The head moves up/down automatically.
  • The basket units and paddle units are made of imported stainless steel (SUS316L).
  • The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
  • A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
  • It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.
  • It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.

  • Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

     Specifications:

  • Speed range (20~200)rpm
  • Speed accuracy ±2rpm
  • Temperature range ambient to +45.0℃
  • Temperature Stability ±0.3℃
  • Preset timing nine points (1~999)min
  • Time accuracy ±0.5mm
  • Paddle radial run-out ±0.5mm
  • Basket radial run-out ±1.0mm
  • Power 220V/50Hz/1200W or 110V/60Hz/1200W
  • Dimension (960*520*480)mm3

Model :RC-8

Features:

  • It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
  • The head part of the instrument can be artificially turned over smoothly and flexibly.
  • The basket units and paddle units are made of imported stainless steel (SUS316L).
  • The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
  • A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
  • It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.
  • It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.

  • Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

     Specifications:

  • Speed range (20~200)rpm
  • Speed accuracy ±2rpm
  • Temperature range ambient to +45.0℃
  • Temperature Stability ±0.3℃
  • Preset timing nine points (1~999)min
  • Time accuracy ±0.5mm
  • Paddle radial run-out ±0.5mm
  • Basket radial run-out ±1.0mm
  • Power 220V/50Hz/1200W or 110V/60Hz/1200W
  • Dimension (960*440*480)mm3

Model :RC-6D

         Features:

  • It has six vessels and six poles arranged on one line.
  • The head moves up/down automatically.
  • The basket units and paddle units are made of imported stainless steel (SUS316L).
  • The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
  • A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
  • It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.
  • It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.

  • Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

     Specifications:

  • Speed range (20~200)rpm
  • Speed accuracy ±2rpm
  • Temperature range ambient to +45.0℃
  • Temperature Stability ±0.3℃
  • Preset timing nine points (1~999)min
  • Time accuracy ±0.5mm
  • Paddle radial run-out ±0.5mm
  • Basket radial run-out ±1.0mm
  • Power 220V/50Hz/1200W or 110V/60Hz/1200W
  • Dimension (960*400*480)mm3

    Model :RC-6

      Features:

  • It has six vessels and six poles arranged on one line.
  • The head part of the instrument can be artificially turned over smoothly and flexibly.
  • The basket units and paddle units are made of imported stainless steel (SUS316L).
  • The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
  • A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
  • It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.
  • It can test by self and alarm automatically. The dissolution parameters of'Chinese codex 2000'are stored in and can be taken out at anytime.

  • Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

     Specifications:

  • Speed range (20~200)rpm
  • Speed accuracy ±2rpm
  • Temperature range ambient to +45.0℃
  • Temperature Stability ±0.3℃
  • Preset timing nine points (1~999)min
  • Time accuracy ±0.5mm
  • Paddle radial run-out ±0.5mm
  • Basket radial run-out ±1.0mm
  • Power 220V/50Hz/1200W or 110V/60Hz/1200W
  • Dimension (960*320*480)mm3

     Model :RC-3

      Features:

  • It has three vessels and three poles arranged on one line.
  • The head part of the instrument can be artificially turned over smoothly and flexibly.
  • The basket units and paddle units are made of imported stainless steel (SUS316L).
  • The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
  • A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
  • It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.

     Specifications:

  • Speed range (20~200)rpm
  • Speed accuracy ±2rpm
  • Temperature range ambient to +45.0℃
  • Temperature Stability ±0.3℃
  • Preset timing nine points (5~900)min
  • Time accuracy ±0.5mm
  • Paddle radial run-out ±0.5mm
  • Basket radial run-out ±1.0mm
  • Power 220V/50Hz/600W or 110V/60Hz/600W
  • Dimension (510*300*480)mm3

    Model :RC-1

      Features:

  • It has one vessels and one poles arranged on one line.
  • The head part of the instrument can be artificially turned over smoothly and flexibly.
  • The basket units and paddle units are made of imported stainless steel (SUS316L).
  • The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
  • A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
  • It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.

     Specifications:

  • Speed range (20~200)rpm
  • Speed accuracy ±2rpm
  • Temperature range ambient to +45.0℃
  • Temperature Stability ±0.3℃
  • Preset timing nine points (5~900)min
  • Time accuracy ±0.5mm
  • Paddle radial run-out ±0.5mm
  • Basket radial run-out ±1.0mm
  • Power 220V/50Hz/600W or 110V/60Hz/600W
  • Dimension (260*300*480)mm3

The other models we supply:

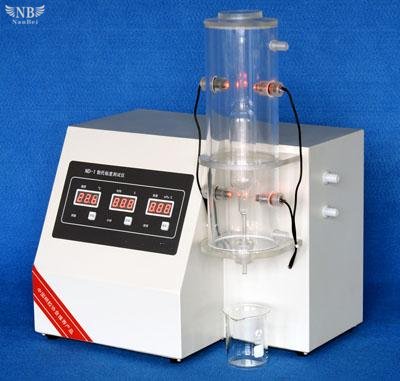

Disintegration tester

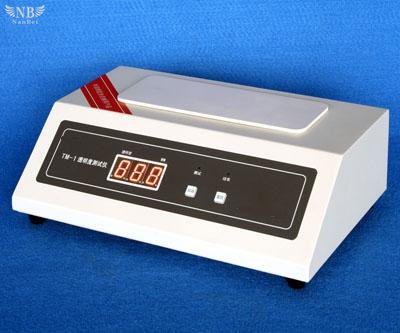

Transparency tester
